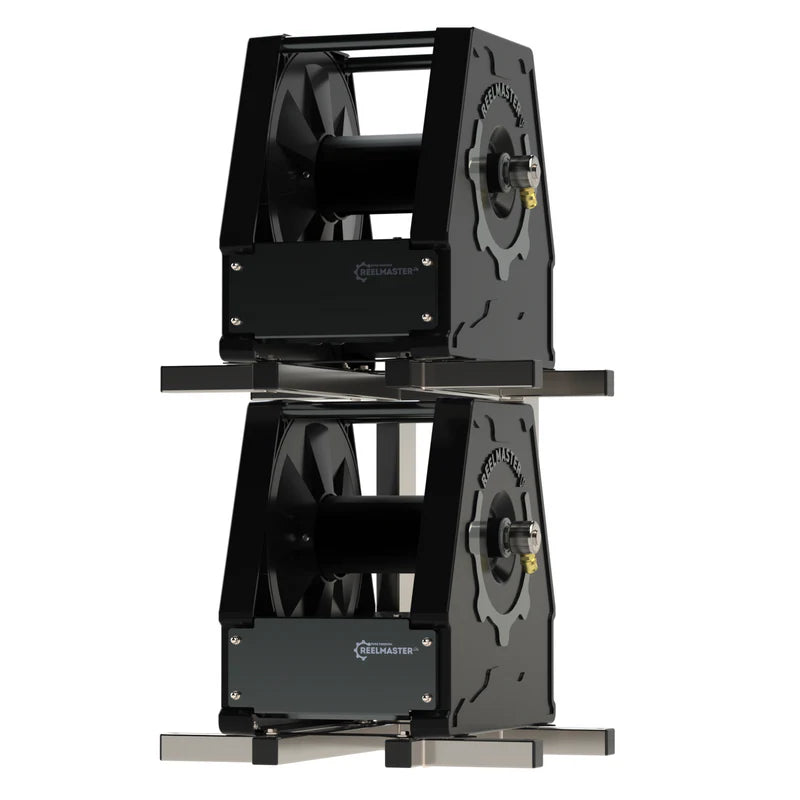

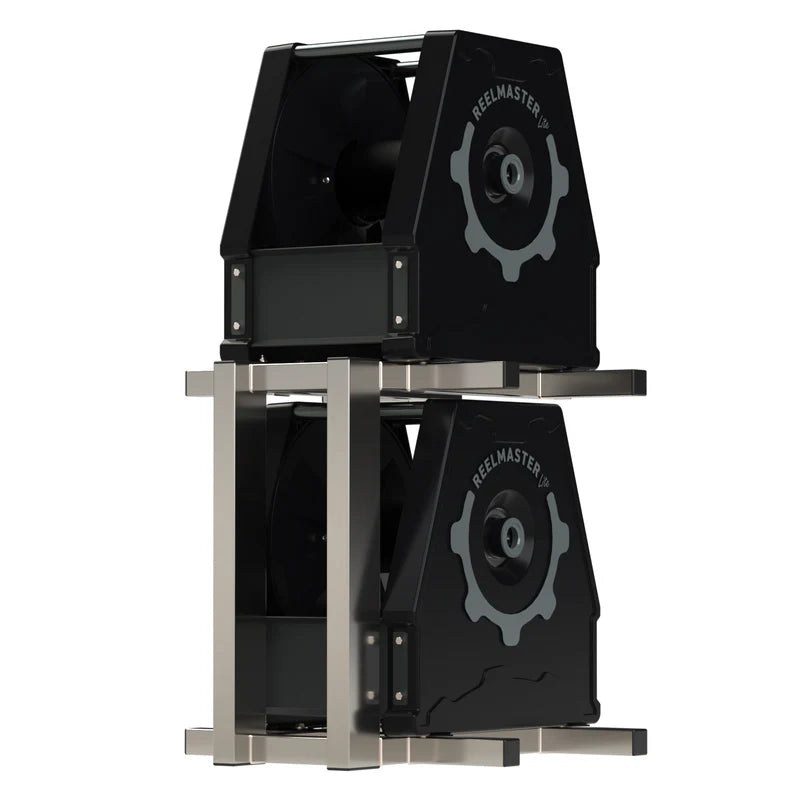

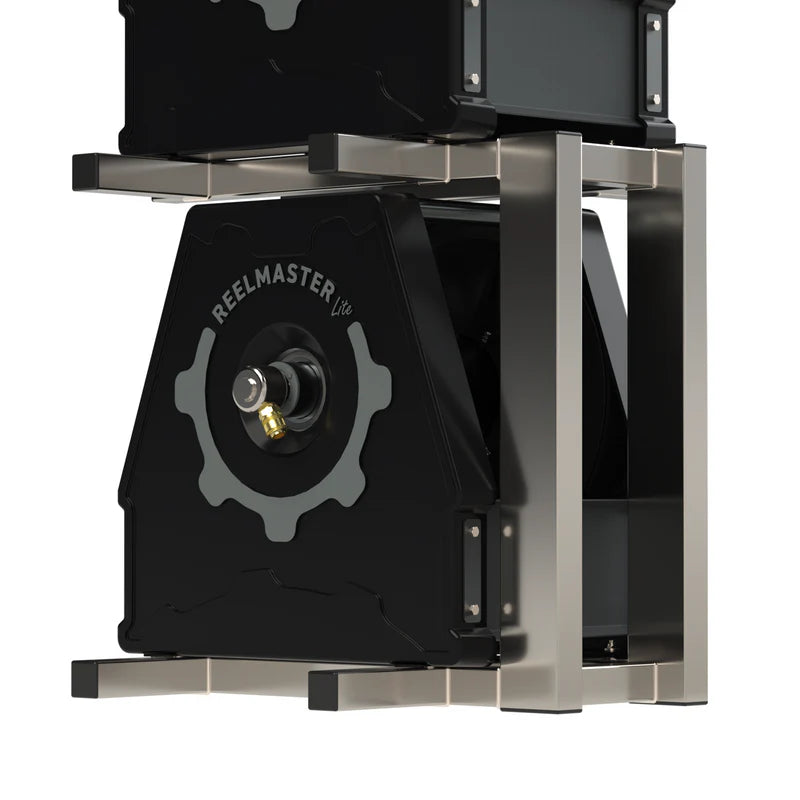

The ReelMaster Lite™ Twin Stack Electric Hose Reels

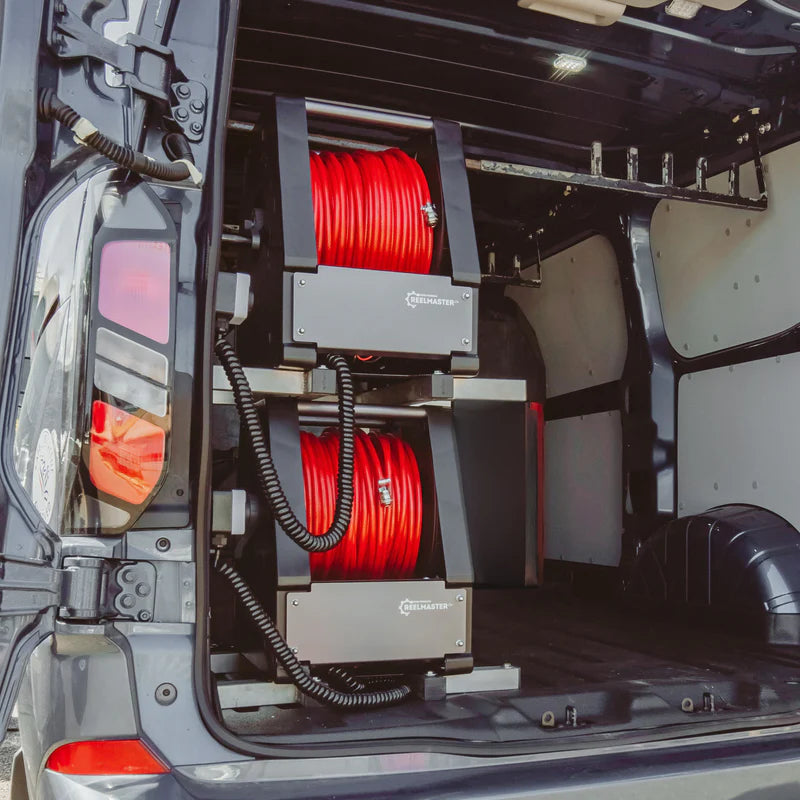

The Pure Freedom ReelMaster Lite™ Twin Stack Electric Hose Reel System provides a compact and convenient hose management solution for professional window cleaning vehicles. Featuring two powered reels mounted within a stainless steel frame, it allows two operators to work independently while making efficient use of available vehicle space.

Each ReelMaster Lite™ unit accommodates up to 100 metres of 6mm hose and features simple single-speed push-button operation for quick and convenient hose retrieval. Manual winding handles are also supplied, allowing the reels to be operated without electrical power when required.

The integrated hose connections include a brass 6mm hosetail inside each spool and a stainless steel swivel with a brass Series 26 female outlet. The swivel connection helps reduce hose twisting during winding, while the 12V power loom incorporates a resettable 20A fuse.

Designed for straightforward installation, the system supports both floor mounting and direct mounting to compatible window cleaning systems. Its hot water-compatible construction makes it suitable for a range of professional cleaning applications.

The ReelMaster Lite™ uses a simplified drive system focused on reliable operation. Unlike the full ReelMaster™ model, it does not feature soft start, snag detection or variable speed control.

• Brand: Pure Freedom
• Model: ReelMaster Lite™ Twin Stack
• Product Type: Twin electric window cleaning hose reel system
• Reel Quantity: 2
• Hose Capacity: Up to 100 metres per reel
• Total Potential Hose Capacity: Up to 200 metres
• Compatible Hose: 6mm
• Power Supply: 12V DC
• Operation: Single-speed electric winding
• Controls: Push-button pendant
• Manual Operation: Manual winding handle included for each reel
• Hose Connection: Brass 6mm hosetail inside each spool
• Outlet Connection: Stainless steel swivel with brass Series 26 female connector
• Swivel: Integrated stainless steel swivel
• Power Loom: 12V with resettable 20A fuse
• Mounting Options: Floor mount or direct system mount
• Frame Material: Stainless steel
• Hot Water Compatibility: Yes
• Soft Start: Not included
• Snag Detection: Not included
• Variable Speed Control: Not included

2x ReelMaster Lite™ Powered Hose Reel Units
2x Brass 6mm Hosetails
2x Stainless Steel Swivels with Brass Series 26 Female Connectors
2x Push-Button Pendant Controls
1x 12V Power Loom with Resettable 20A Fuse
2x Manual Winding Handles
1x Stainless Steel Twin Stack Frame
1x Instruction Manual

6mm hose and mounting fixings are not included.
