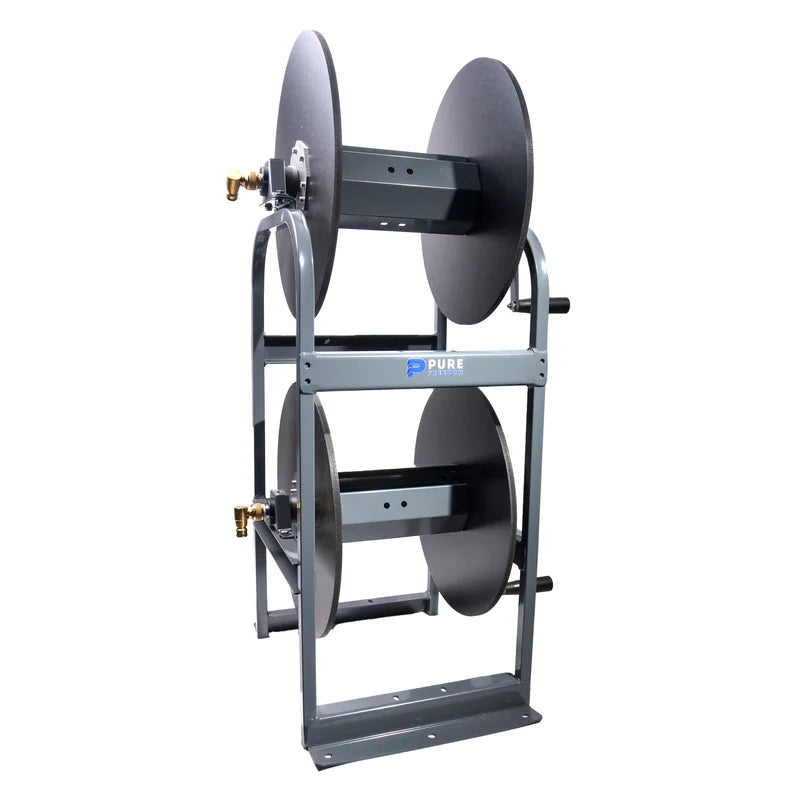

The Twin Stack Reel

A twin stacked hose reel frame developed by the Pure Freedom team specifically for the Window Cleaning industry. Twin stacked reels are a great option to run two operators and save space in the back of your vehicle.

Unlike hose reels repurposed from other industries, the Pure Freedom Twin Stack Hose Reels are designed on the back of a wealth of industry experience, to stand up to the rigours of day-to-day Window Cleaning.

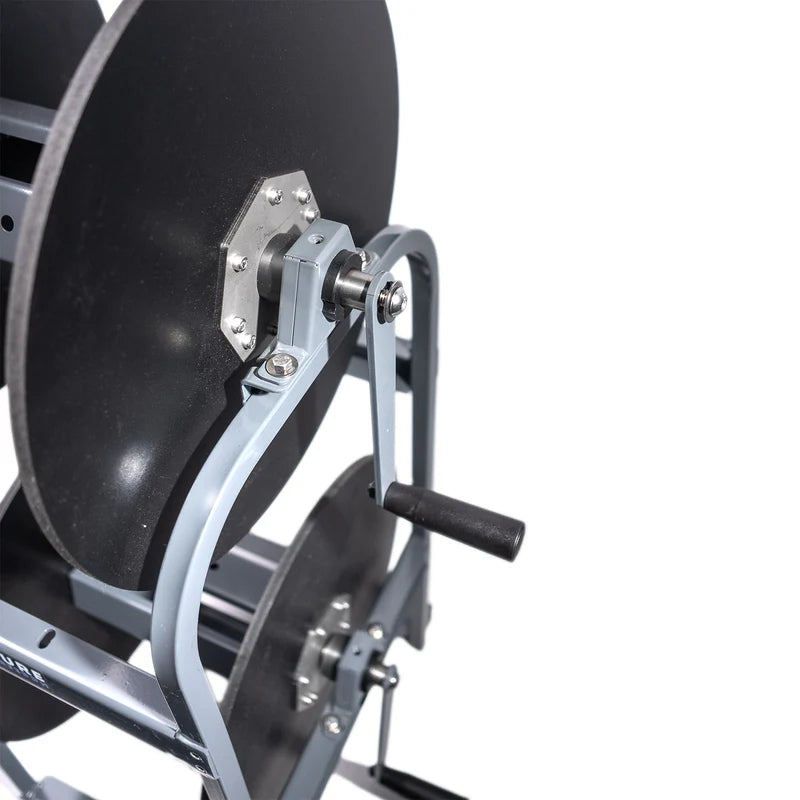

These reels are a one-piece welded frame, a one-piece drum and the bearing blocks are bolted into position to allow easy adjustment. The drive side has an adjustable bearing to allow adjustment that prevents 'over spooling', and an extra strong metal winding handle.

Each reel is supplied bare or with a high quality triple layered, Window Cleaning Hose. This hose is durable, flexible, and lightweight - a perfect match for our twin stacked reels.

• Manufactured by a UK engineering Company
• Designed and built specifically for the Window Cleaning industry
• Shipped fully assembled
• Save floor space in your vehicle

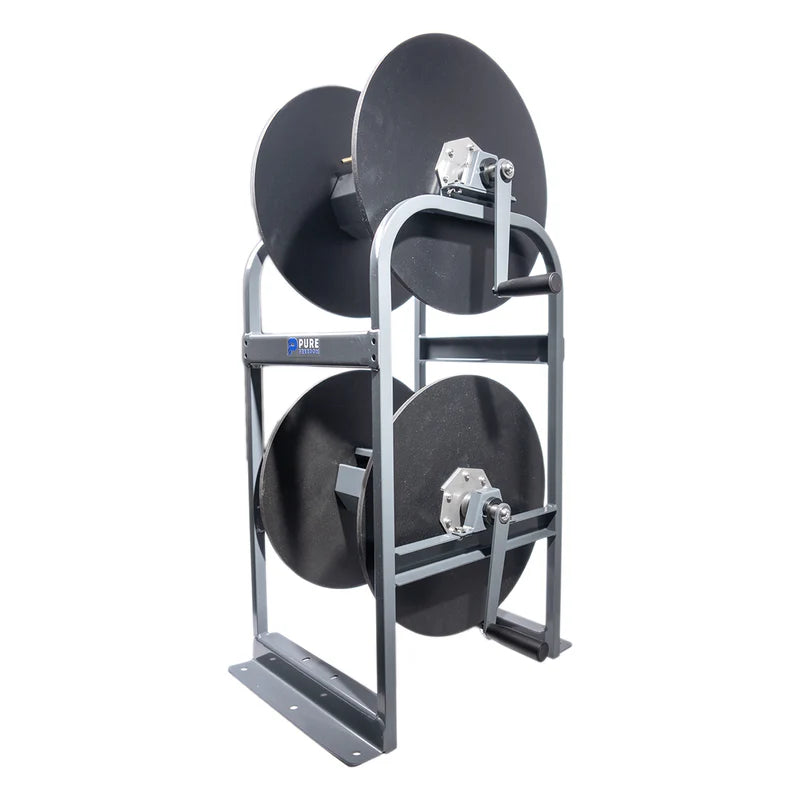

• Grey steel frame, tough winding metal handle
• Heavy duty solid steel centre, spindle, and bearings

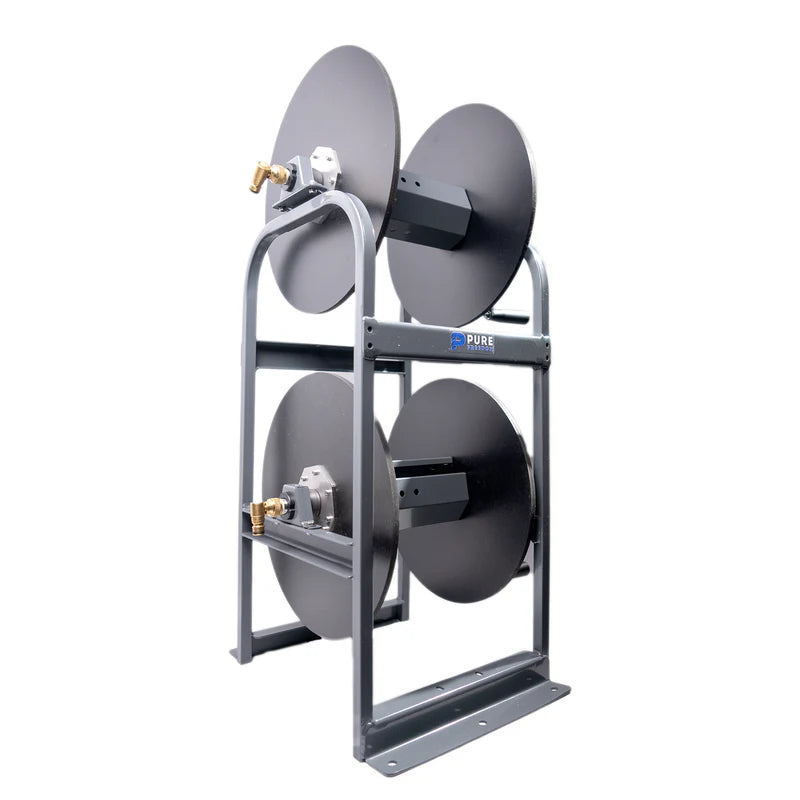

• Brass male hoselock type inlet connector
• Includes outlet hose adapter to fit 8mm ID hose

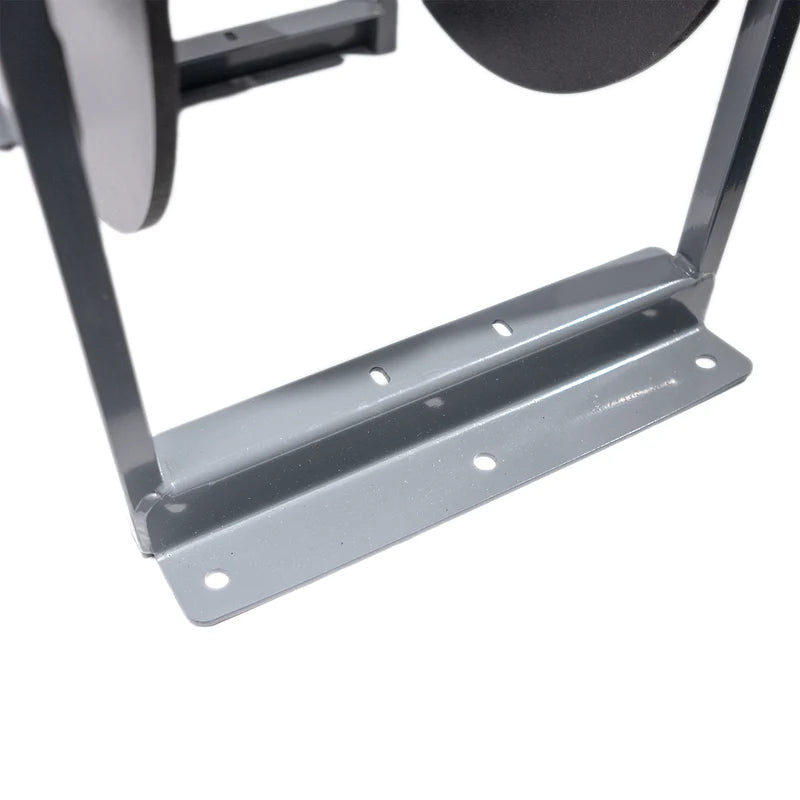

• Mounting base with holes pre-drilled ready to bolt down

Specifications

• Construction: Powder Coated Steel
• Capacity: 2 of 100m x 8mm (12.5mm) ID Hose
• Height: Approx. 1000mm
• Width: Approx. 510mm
• Length: Approx. 470mm
• Weight: 13.5kg without hose / 34.7kg with hose
• Max Working Pressure: 100psi (at 20°c)
