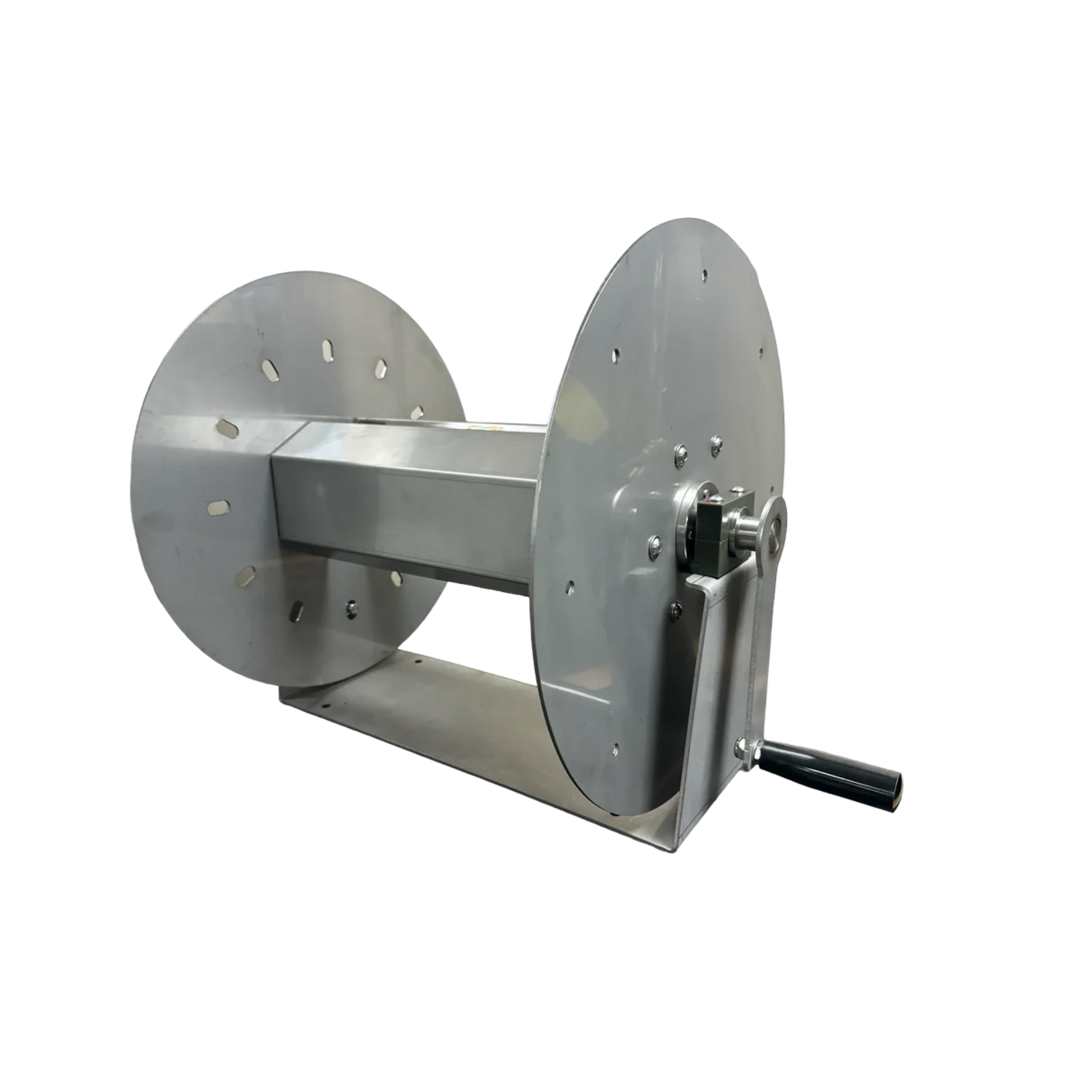

Watertek High Pressure 100m Reel ⅜" Swivels

The base frame of this hose reel is constructed from high-grade AISI 304 stainless steel, offering exceptional durability and superior resistance to corrosion, making it ideal for demanding environments.

The drum is engineered for smooth and consistent rotation, operated באמצעות an adjustable hand wheel and a free-spinning stainless steel grip for comfortable, effortless handling.

At the core of the reel, the hub features two heavy-duty stainless steel centres supported by maintenance-free bearings, ensuring long-lasting, reliable performance with minimal maintenance. A built-in mechanical brake allows the reel to lock securely into 12 distinct positions, providing safe and controlled hose management.

For enhanced reliability and longevity, the reel is fitted with a premium stainless steel swivel, designed to deliver smooth, low-maintenance operation while reducing wear over time.

Built for performance and durability, this hose reel is perfectly suited for both industrial and commercial applications.

Technical Specifications:

• Inlet: 3/8" Female
  (Optional: 3/8" Male, 3/8" Female Swivel, M22 Male)
• Internal: 3/8" Female
• Maximum Pressure: 250 BAR
• Maximum Flow Rate: 30 LPM
• Maximum Temperature: 120°C

Dimensions:

• Height: 470mm
• Width: 570mm
• Depth: 450mm
