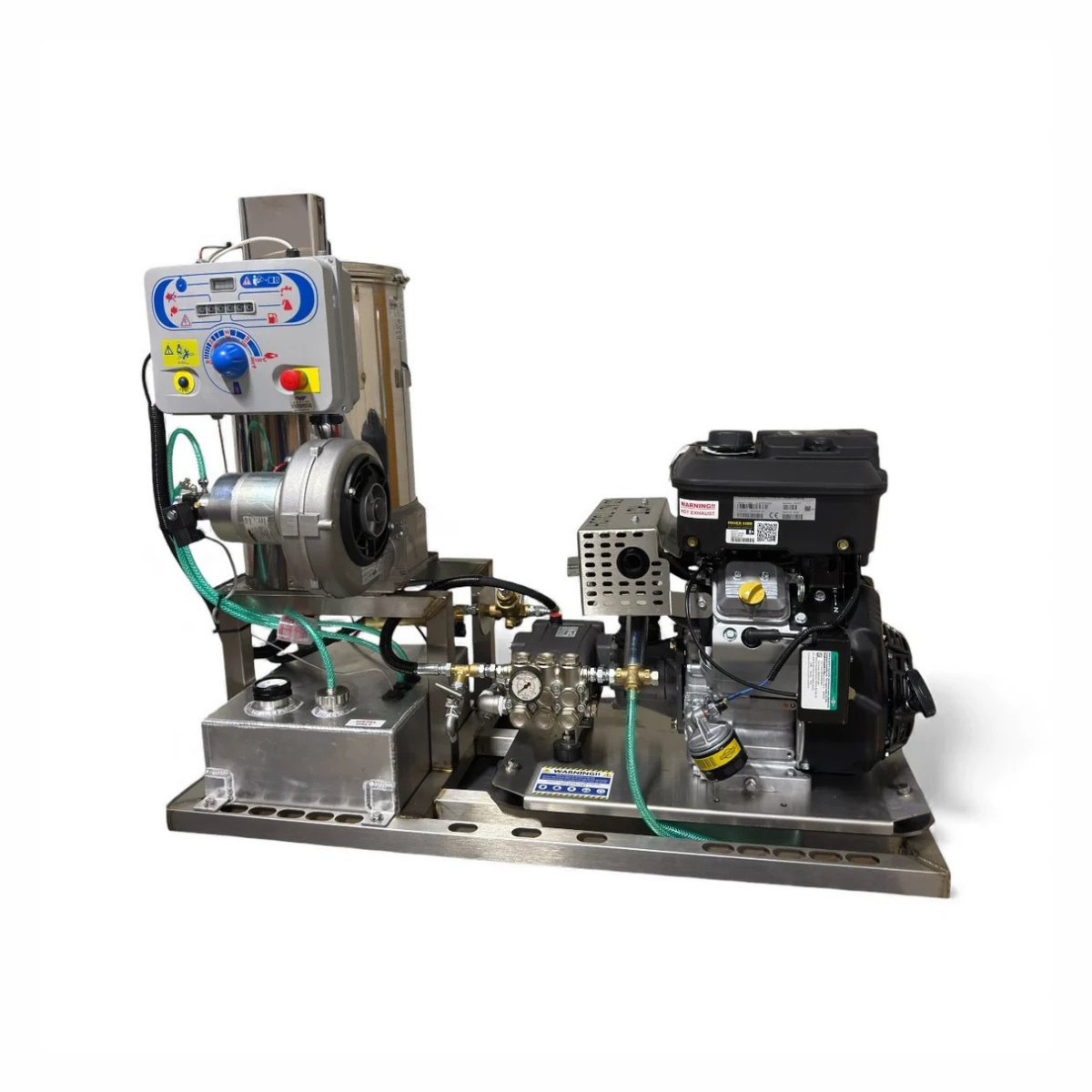

Watertek Hot Van Pack 18HP High Output 25L 250 Bar Skid Assembly

The Watertek Hot Van Pack 18HP High Output is a professional hot-water pressure washing skid designed for fixed installation in commercial van-pack systems.

The unit combines an 18HP high-output engine, Mazzoni® triplex plunger pump, 25-litre diesel boiler and stainless-steel skid frame to provide a high-flow, high-pressure hot-water cleaning system for professional applications.

Technical Specification

Pump System

Mazzoni® Italian Triplex Plunger Pump

• Premium commercial-grade pump
• Triplex plunger configuration
• Ceramic pistons
• Maximum output: 25 LPM
• Maximum pressure: 250 bar

The ceramic piston construction is designed for durability and reliable performance under continuous professional use.

Hot Water System

Mazzoni 25 Litre Diesel Boiler

• 25-litre boiler
• Diesel fired
• Engine powered
• Integrated into the pressure washing skid
• Designed for hot-water pressure washing applications
• No solar charging system required
• No inverter required

Return-to-Tank System

The return-to-tank configuration allows the system to recirculate water when the trigger is released or when operating at reduced flow.

The integrated steam valve provides the ability to operate the system at lower pressure and flow for specialist low-pressure restoration applications.

Minimum Hot-Water Operating Specification

4 LPM @ 25 bar

Construction

Stainless-Steel Bolt-Down Skid Frame

• Stainless-steel construction

• Heavy-duty bolt-down design

• Designed for permanent vehicle installation

• Suitable for professional commercial use

• Designed and built in Britain

Performance

• Maximum Pressure: 250 bar
• Maximum Flow: 25 LPM
• Hot-Water Minimum: 4 LPM @ 25 bar
• Engine: 18HP High Output
• Boiler: 25 Litre Mazzoni Diesel
• Pump: Mazzoni® Italian Triplex Plunger
• Pump Pistons: Ceramic

Intended Installation

The Watertek Hot Van Pack is designed as a skid-mounted pressure washing system for installation within a commercial van pack.

The stainless-steel bolt-down frame allows the unit to be securely fixed within the vehicle, providing a dedicated platform for the engine, pump, boiler and associated components.
