Watertek Hot Van Pack 23HP High Output Skid Assembly

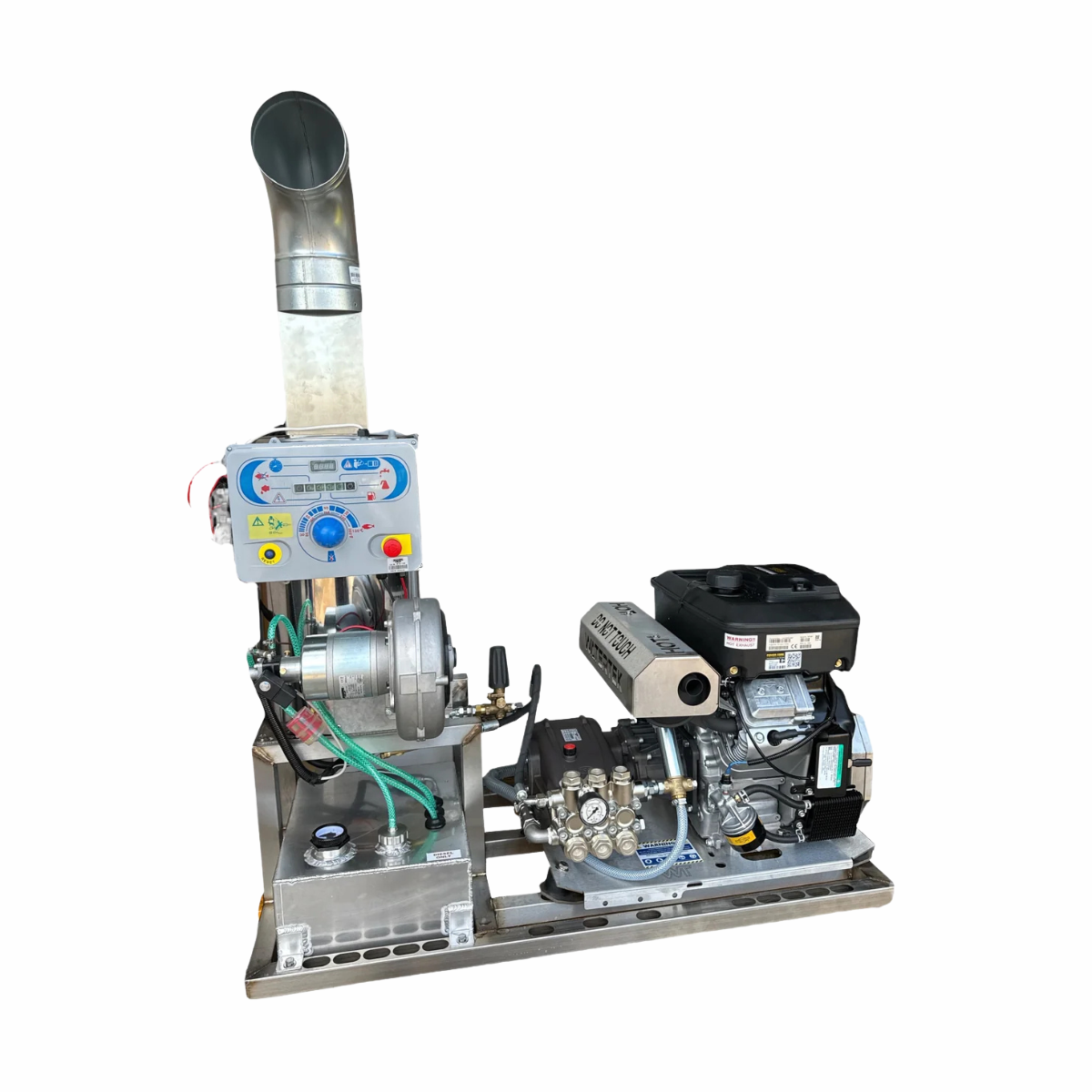

Watertek B&S Vanguard 23hp High Output E-Start Pressure Washer Skid Assembly

Built for demanding commercial cleaning applications, the Watertek B&S Vanguard 23hp High Output E-Start Pressure Washer Skid Assembly combines high flow, high pressure and dependable industrial components in a rugged, professional-grade package.

Designed and manufactured in the UK, this heavy-duty skid features a robust stainless-steel frame, corrosion-resistant construction and premium industrial components sourced from leading manufacturers worldwide. Every element is selected for durability, reliability and ease of servicing in demanding working environments.

At the heart of the system is an industrial-grade B&S Vanguard 23hp High Output Electric Start petrol engine, backed by a 3-year engine warranty. The engine is paired with a Mecline M24 2:2:1 reduction gearbox, helping the pump operate at a lower speed for cooler running, reduced wear and extended pump life.

The system is available with either a 30 LPM or 25 LPM Mazzoni GM Series pump, both delivering up to 250 bar. The Mazzoni pump is backed by a 2-year manufacturer warranty and is designed to provide reliable performance in demanding commercial applications.

Built for Professional Performance

The Watertek Industrial skid is designed with serviceability and reliability in mind. Features such as the return-to-tank unloader valve, easy-prime valve and frost protection valve help improve efficiency and make the machine easier to operate and maintain.

The field-service-friendly design allows routine maintenance and repairs to be carried out quickly using basic tools, helping to minimise downtime and keep you working.

An anti-vibration mounting system helps reduce vibration during operation, while the nickel-plated pump head provides additional resistance to corrosion and wear.

With high-flow pump options available, the 23hp engine provides the power required for more demanding commercial cleaning tasks. The increased flow rate allows you to cover larger areas more quickly, helping to improve productivity and reduce cleaning time.

Why Choose the 23hp High Output Engine?

The Vanguard 23hp High Output engine provides more than enough power to drive the high-flow pressure washer while also supplying electrical power for additional equipment.

The high-output charging system helps maintain the battery while the machine is running, allowing the 12V boiler and other compatible accessories to be powered without requiring a separate external power supply.

This makes the skid a highly versatile solution for professional cleaning operations, providing the power and flexibility needed for more demanding commercial applications.

Pump Options

Choose from two high-flow configurations:

• 30 LPM / 250 bar – Mazzoni GM30250CW

• 25 LPM / 250 bar – Mazzoni GM25250CW

Both options use the proven Mazzoni GM Series pump and are designed for reliable performance in professional environments.

Technical Specifications

Please note: The battery is supplied with the unit but is not fitted when the skid plate option is selected.

Dimensions & Weight

• Weight: 195 kg

• Height: 1500 mm

• Width: 1200 mm

• Depth: 600 mm

Ideal for Van-Mounted Commercial Setups

This unit is best used securely bolted down as part of a van-pack or vehicle-mounted cleaning system.

Its high-flow configuration makes it particularly well suited to professional cleaning contractors who need to cover large areas efficiently and require dependable equipment capable of handling demanding commercial workloads.

Water Supply Requirement

This pressure washer must be used with a suitable water storage tank, such as a wheelie bin or dedicated water tank.

Standard garden tap pressure and flow will not provide sufficient water supply for the demands of the high-flow pump. A suitable water-fed setup is therefore essential for correct operation.

Watertek Industrial Range

The Watertek Industrial Range is built around premium components sourced through a global supply chain, including leading manufacturers and suppliers in France, Germany, Italy and the USA.

Combining robust construction, high-flow performance and professional-grade components, Watertek equipment is designed to deliver reliable performance in demanding working environments.

Built for professionals. Designed for productivity. Engineered to keep you working longer.
