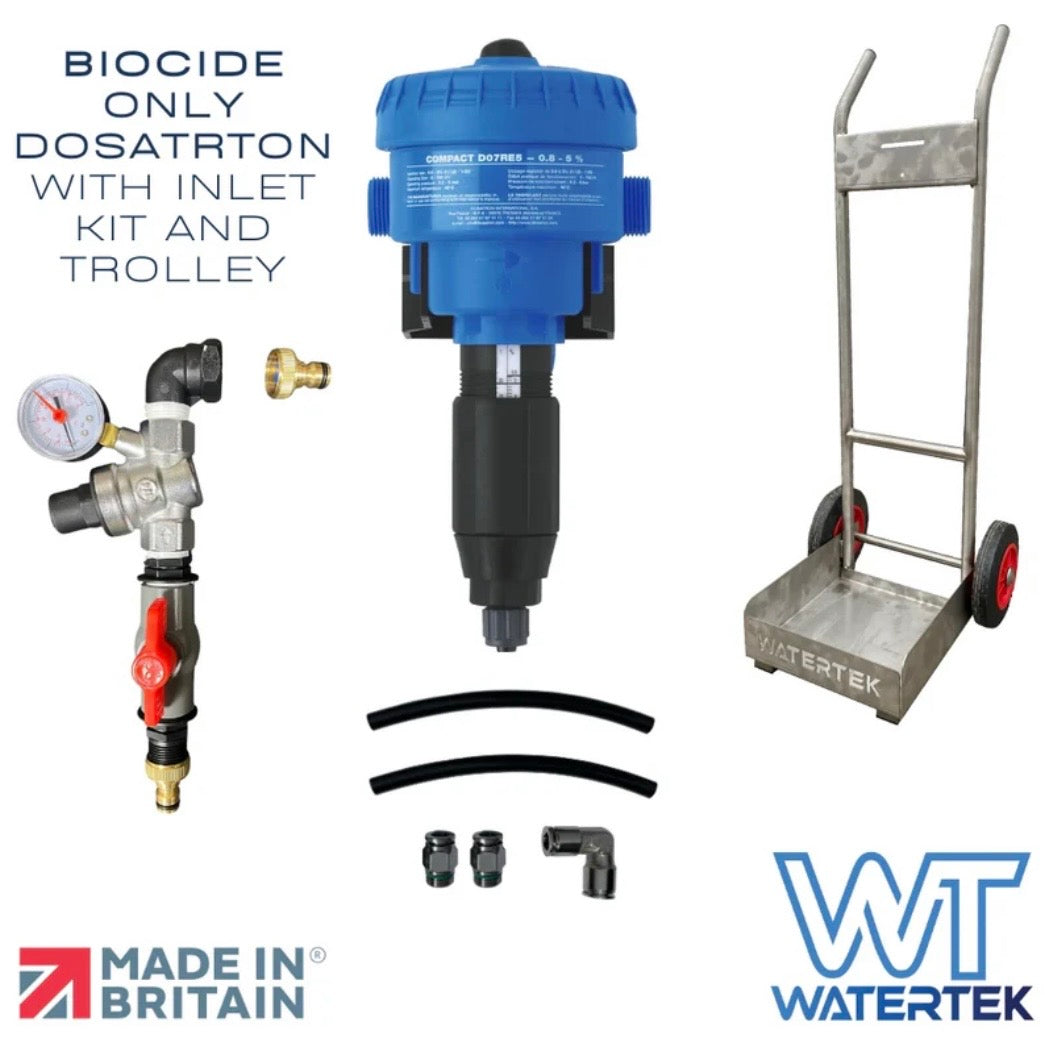

Watertek SoftWash Bio Dosatron DO7 Dosing Trolley

Dosatron D07RE5 dosing pump chemical injector unit

Dosatron dosing pumps are installed directly in the water supply line and operate by using the flow of water as the power source – no electric power is needed. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water. Inside the Dosatron chemical injector unit, the concentrate is mixed with the water, and the water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.

Dosatron D07RE5 Details:

• Dosing Rate – 0.8% to 5.5% (1:128 to 1:18)
• Water Flow Range – 5 to 700 Litres Per Hour
• Operating Water Pressure – 0.3 to 6 Bar (4.3 PSI to 85 PSI)
• Operating Water Temperature – 5°C to 40°C
• Connections – 3/4” BSP / NPT Male
• Packaged Weight – 1KG
• Packaged Dimensions – 160 x 330 x 185mm (L x W x H)
• Polypropylene pump casing

Package Contents:

• Inlet Kit- Caleffi Valve Pressure Gauge, Ball Valve
• Dosatron Wall Bracket
• Dosatron Trolley
• Transparent Suction Tube – 175cm Long, ø 6mm ID x 9mm OD (1/4’’ ID x 3/8’’ OD)
• Owner’s Manual

Barrel  NOT INCLUDED
